GB/T 10105-88 Ship’s Guide Roller (with Stand)

GB/T 10105-88 Ship’s Guide Roller (with Stand)

Marine Guide Roller for Smooth and Reliable Mooring Rope Guidance

  • Standard: GB/T 10105-88 / NS 2585
  • Type: Marine Guide Roller
  • Roller Diameter: 150–450 mm
  • Material: Marine-Grade Steel
  • Installation: Deck Mounted
  • Application: Mooring & Towing Systems
  • Configuration: Single Roller / Two-Roller / Three-Roller
  • Surface Treatment: Marine Paint / Customized Coating
  • Customization: Available
  • Certificate: CCS, BV, ABS, DNV, GL, NK, etc.

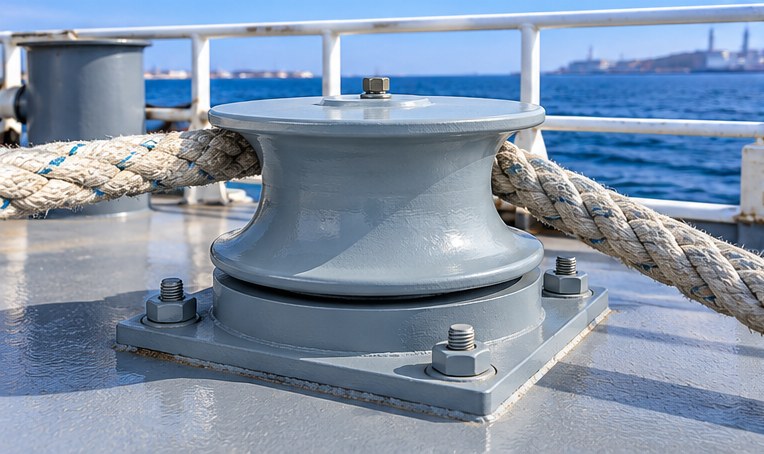

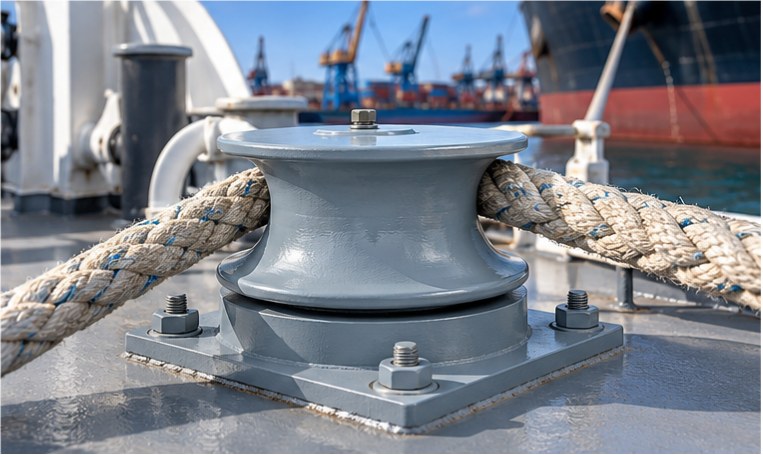

The GB/T 10105-88 Ship’s Guide Roller (with Stand) is a marine deck fitting designed to guide mooring ropes smoothly and safely during vessel mooring and towing operations.

The specially shaped roller provides a smooth contact surface for the rope and allows the rope direction to change while minimizing friction, abrasion and excessive bending.

Manufactured according to GB/T 10105-88, the guide roller is available in several sizes with roller diameters from 150 mm to 450 mm. Different models can accommodate steel wire ropes, hemp ropes and synthetic fiber ropes.

In addition to individual guide rollers, Boomarine can supply open-type two-roller and three-roller fairlead configurations for applications requiring multi-point rope guidance.

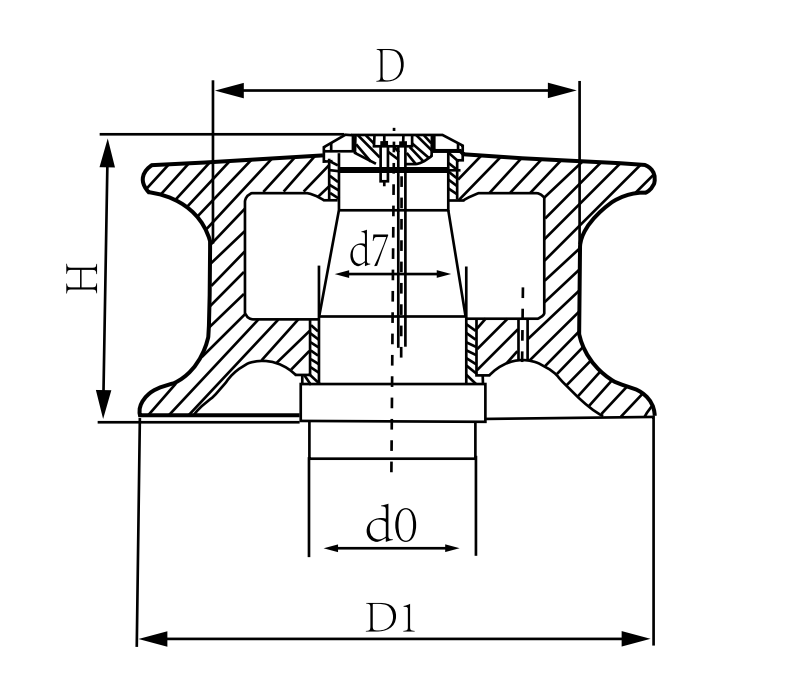

Technical Specifications

Dimensions and rope diameters: mm.

GB/T 10105-88 Ship’s Guide Roller (with Stand)
Roller Dia. DSteel Wire Rope 6×24Steel Wire Rope 6×37Hemp RopeSynthetic Fiber RopeD1d0d7HWeight (kg)
15017.0 154532240907915424.8
20022.5 19.555403101159918649.3
25024.0 24654538013511923092.0
30030.0 287050440155129255127.0
35037.5 34.57555500175149271168.0
40041.0 398565560185159307252.5
45044.5 43—80630210179316310.0

The above specifications are based on the supplied technical drawing. Final dimensions and applicable rope specifications should be confirmed before production.

Key Features

1. Smooth Rope Guidance

The curved roller surface lets mooring ropes move smoothly as they change direction, reducing friction and localized wear.

2. Heavy-Duty Construction

Robust marine-grade steel construction provides reliable performance under demanding mooring and towing conditions.

3. Suitable for Different Rope Types

Available for use with steel wire rope, hemp rope and synthetic fiber rope, depending on roller size and project requirements.

4. Wide Size Range

Roller diameters from 150 mm to 450 mm accommodate different vessel sizes and mooring arrangements.

5. Reduced Rope Wear

The rotating roller minimizes sliding friction between the rope and fixed deck structures, helping extend rope service life.

6. Marine Corrosion Protection

Marine-grade coatings provide protection against seawater, salt spray and humid marine environments.

Available Configurations

Single Ship’s Guide Roller

The single guide roller is suitable for installations where a mooring rope needs to be supported or redirected at a specific point.

Available roller sizes:

150 / 200 / 250 / 300 / 350 / 400 / 450 mm

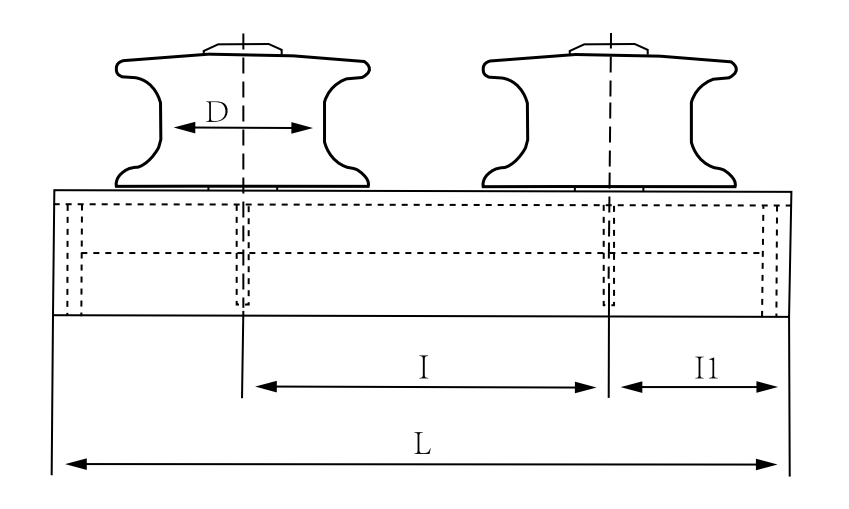

Open Type Two-Roller Fairlead

The two-roller arrangement provides two rope-guiding positions on a common steel foundation.

GB/T 10105-88 Ship’s Guide Roller (with Stand)
SizeDLII1
150150740420160
200200930530200
2502501100640230
3003001270750260
3503501440860290
4004001610970320
45045018001080360

This configuration is suitable where multiple rope lead positions are required along the same deck area.

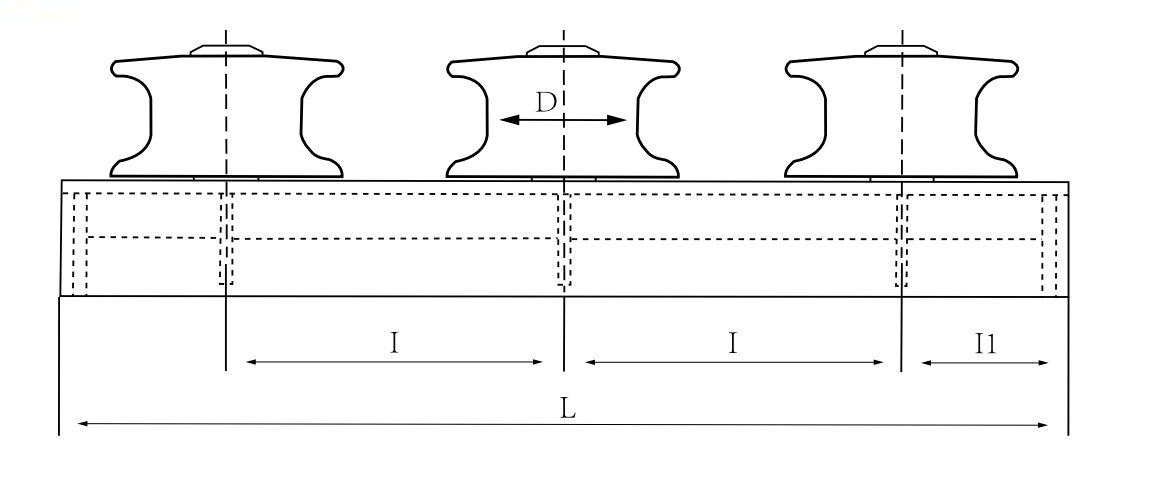

Open Type Three-Roller Fairlead

For more complex mooring arrangements, three guide rollers can be installed on a common foundation.

GB/T 10105-88 Ship’s Guide Roller (with Stand)
SizeDLII2
1501501160420160
2002001460530200
2502501740640230
3003002020750260
3503502300860290
4004002580970320
45045028801080360

The three-roller arrangement provides additional rope-guiding positions for vessels requiring more flexible mooring line arrangements.

Applications

GB/T 10105-88 ship’s guide rollers are widely used in marine mooring and towing systems, including:

  • Cargo ships
  • Bulk carriers
  • Container vessels
  • Tankers
  • Tugboats
  • Workboats
  • Offshore support vessels
  • Engineering vessels
  • Marine platforms
  • Shipyards and marine engineering projects

They are particularly suitable for deck areas where mooring ropes need to be supported, redirected or guided smoothly during operation.

GB/T 10105-88 Ship’s Guide Roller (with Stand)
GB/T 10105-88 Ship’s Guide Roller (with Stand)

Why Choose Boomarine?

Boomarine supplies marine mooring, anchoring and deck equipment for shipyards, shipowners, marine contractors and offshore projects worldwide.

Our product range includes guide rollers, roller fairleads, Panama chocks, mooring chocks, bollards, chain stoppers, anchors, anchor chains and marine fenders.

FAQ

A ship’s guide roller guides and redirects mooring or towing ropes while reducing friction and rope wear during operation.

Standard roller diameters are 150, 200, 250, 300, 350, 400 and 450 mm.

Depending on the selected size, the guide roller can be used with steel wire ropes, hemp ropes and synthetic fiber ropes.

A single guide roller provides one rope-guiding position. Two-roller and three-roller fairleads combine multiple rollers on a common foundation to provide additional rope-guiding positions.

Yes. Open type two-roller and three-roller configurations are available according to the supplied specifications or customized project drawings.

Yes. Boomarine can manufacture guide rollers and roller fairlead assemblies according to customer drawings and installation requirements.

Marine paint systems and customized anti-corrosion coatings can be provided according to vessel or shipyard requirements.

Please provide the roller diameter, rope type, rope diameter, required configuration, quantity and technical drawing, if available.
