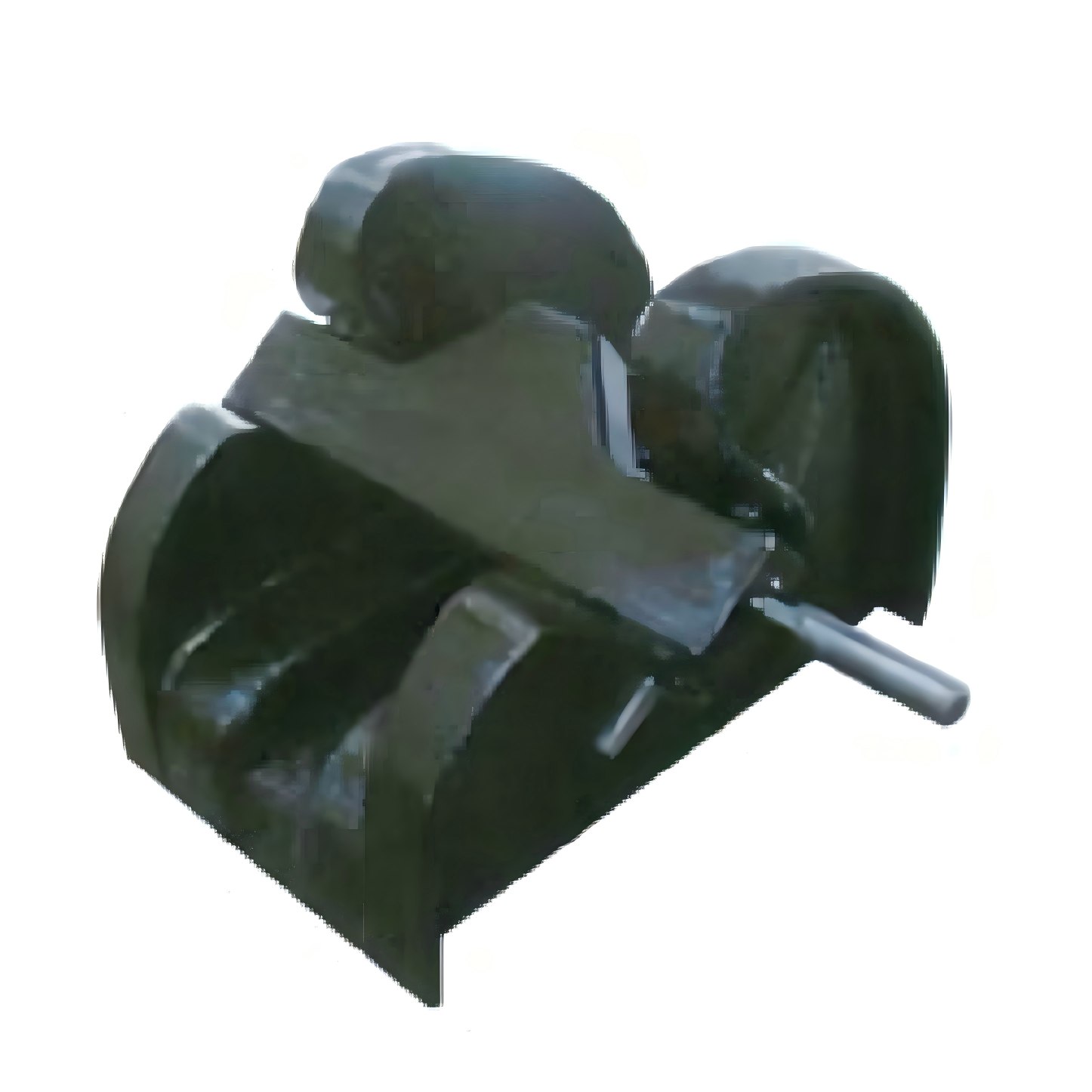

JIS F2015-87 Casting Bar Type Chain Stopper

The JIS F2015-1987 Casting Bar Type Chain Stopper is a marine deck fitting that meets the Japanese Industrial Standard F2015-1987. Its primary role is to clamp the anchor chain firmly in place, prevent any unintended payout, and thus protect the entire anchoring system.

Manufactured from high-grade cast steel, the stopper sits between the windlass and the chain pipe. When the vessel is at anchor, it locks the chain and relieves most of the strain on the brake. As specified in the JIS standard, a robust hinged arm engages a chain link and halts forward motion. This straightforward mechanism combines ease of use, rapid operation, and the ability to bear heavy loads without deformation.

Suitable for various types of ships, the chain stopper is installed on the deck of the ship to effectively secure the anchor chain and relieve the overload of the windlass during anchoring operations. The chain stopper is made of high-strength casting process to ensure reliable operation even in harsh marine environments. As a leading marine equipment supplier in China, Boomarine provides various types of mooring and towing equipment. Should you require further information or wish to place an order, please contact our sales team.

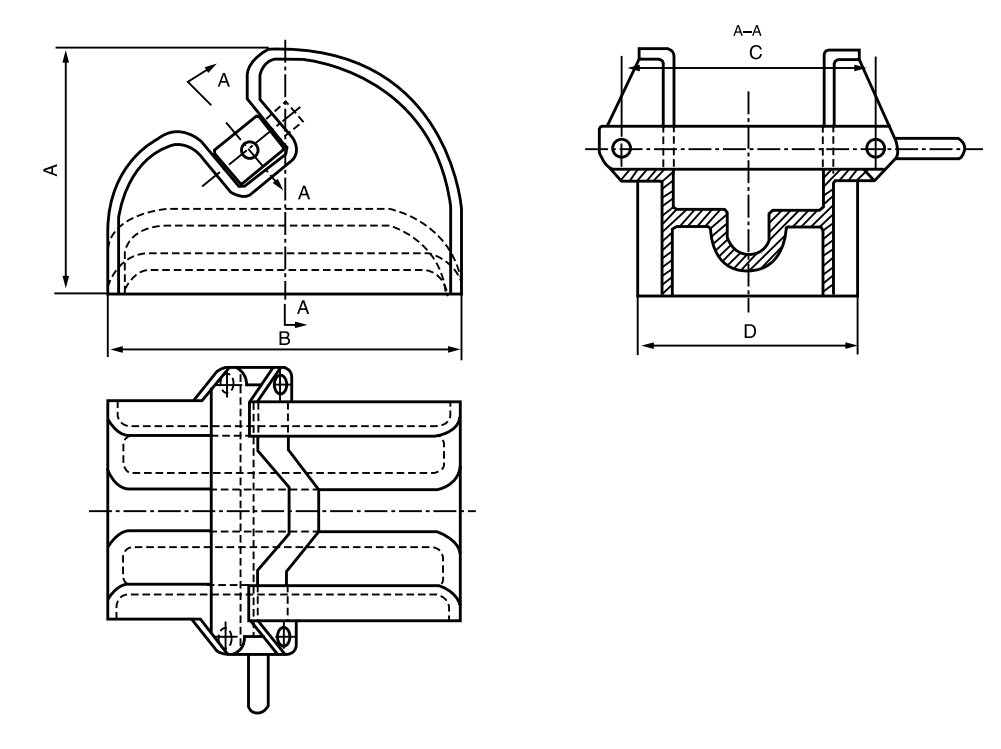

Dimensions of JIS F2015-87 Casting Bar Type Chain Stopper (mm):

Nominal dia.	40	44	48	52	56	60	64	68	73	78
Suitable chain dia.	38-40	42-44	46-48	50-52	54-56	58-60	62-64	66-68	70-73	76-78
A	378	412	450	491	528	564	600	635	675	715
B	540	590	640	695	745	795	850	900	960	1020
C	390	424	460	494	530	564	600	636	678	720
D	336	366	397	428	457	488	517	547	582	617
Weight(kg)	111	139	176	216	261	319	396	482	608	739

Features of Casting Bar Type Chain Stopper

• Complies with JIS F2015-87: This ensures every component meets Japans strict rules on materials, dimensions, and performance, giving operators extra peace of mind.
• Sturdy cast structure: Manufactured from premium cast steel, the unit resists impacts, bending, and rust, thus extending service life in rough marine conditions.
• Durable surface treatment: A high-grade marine coating or hot-dip galvanizing guards against seawater, keeping maintenance costs low.
• Bar-type design: The familiar lever mechanism grips each chain link tightly, preventing accidental release under load.
• Simple, reliable operation: Clear markings and a straightforward motion let the crew engage or disengage the stopper quickly, boosting both safety and efficiency.
• High Holding Force: Each cast-bar stopper is built to bear heavy loads so the anchoring pull moves smoothly from chain to the vessels deck.
• Multiple Sizes Available: Stoppers come in a range of dimensions that match chain thickness, letting shipbuilders choose the perfect fit for every anchoring task.

Applications of Casting Bar Type Chain Stopper

JIS F2015-87 cast-bar chain stoppers feature on many kinds of hulls, including:

• Merchant vessels: bulkers, box ships, tankers and general cargo carriers.
• Offshore vessels: supply boats, anchor-handling tugs and installation units.
• Fishing vessels: trawlers, purse-seiners and other commercial rigs.
• Tugboats and barges: securing lines for tow jobs and calm-water mooring.
• Large yachts and passenger ships: dependable anchoring adds vital comfort and safety.

By meeting strict JIS standards, these stoppers give crews worldwide the proven link that keeps anchor chains locked fast.
