CB3062-79 Four-Roller Fairlead Type BB

CB3062-79 Four-Roller Fairlead Type BB

  • Standard: CB3062-79
  • Type: BB (Closed Type)
  • Roller Quantity: 4 Rollers
  • Material: Cast Steel / Cast Steel Frame with Steel Rollers
  • Steel Wire Diameter: 19.5 mm – 68 mm
  • Nylon Rope Diameter: 36 mm – 100 mm
  • Weight Range: 155 kg – 3352 kg
  • Surface Treatment: Sand Blasting, Primer, Marine Paint
  • Certificate: CCS, BV, ABS, DNV, GL, LR, NK, etc.

The Four-Roller Fairlead Type BB is a heavy-duty marine rope guide, sort of, designed to match the CB3062-79 standard. It has four rollers set up with two rollers placed horizontally, and two rollers placed vertically, all held inside a sturdy steel frame. The top section is enclosed, so the rope gets better protection and people get more operational safety while mooring towing, and anchoring.

When installed on ship decks, quay walls, offshore platforms, and marine terminals, the Type BB roller fairlead helps guide mooring lines while keeping resistance low, reducing rope wear, and preventing excessive bending stress. With this roller layout, the rope can be steered smoothly from different approaches, which supports a balanced load transfer and helps both ropes and the fairlead parts last longer.

Built for demanding marine conditions, the Four-Roller Fairlead Type BB is widely used on cargo vessels, container ships, tankers, tugs, offshore installations, and port facilities worldwide.

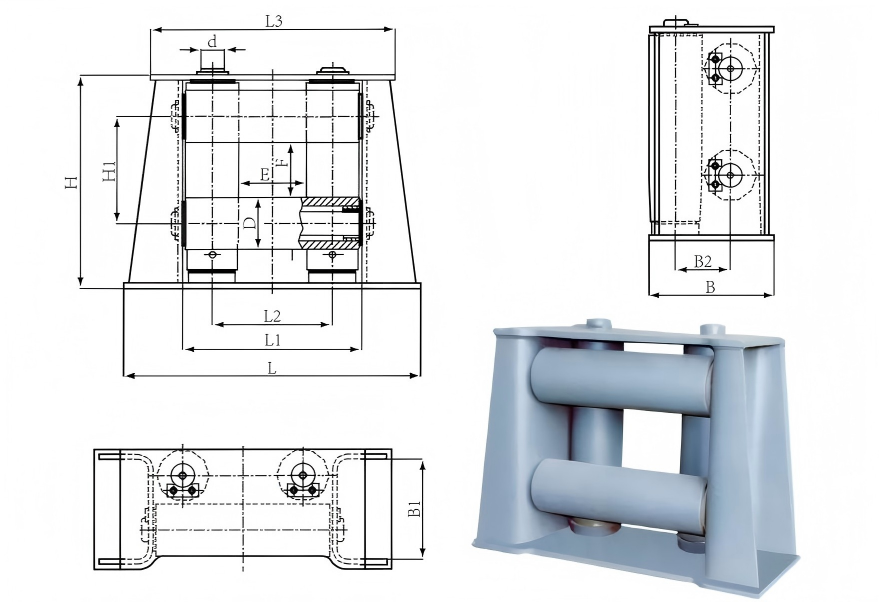

Parameters of CB3062-79 Four-Roller Fairlead Type BB (mm)

CB3062-79 Four-Roller Fairlead Type BB
Steel
wire dia.		Nylon
wire dia.		EFDd LL1L2L3BB1B2 HH1Weight
(kg)
19.5 36 200 150 100 40644 416 300 544 238 194 108 508 250 155
22.5 40 200 150 120 50728 456 320 608 280 232 128 552 270 239
26.0 45 200 180 130 55776 480 330 646 304 250 138 606 310 306
32.0 70 220 180 150 65880 540 370 730 346 288 158 670 330 450
34.5 80 240 200 160 70940 580 400 780 370 308 168 710 360 576
37.5 85 240 200 180 801030 620 420 850 417 345 190 770 380 756
43.0 95 260 210 200 901136 686 460 936 459 385 210 820 410 987
52.0 100 260 220 230 1001256 746 490 1026 521 445 240 910 450 1370
60.5 –300 240 260 1201430 850 560 1170 590 500 270 1000 500 2008
68.0 –320 250 320 1501690 990 640 1370 714 620 330 1130 570 3352

Features of CB3062-79 Four-Roller Fairlead Type BB

  • Heavy-Duty Construction: Manufactured from high-quality cast steel, providing excellent strength, durability, and impact resistance for long-term marine service.
  • Four-Roller Design: The combination of horizontal and vertical rollers enables smooth rope movement from different angles while reducing rope abrasion.
  • Reduced Rope Wear: Rollers rotate freely during operation, minimizing friction and extending the service life of wire ropes and synthetic mooring lines.
  • Closed-Top BB Structure: Compared with the BA type, the BB type features a covered upper frame, offering enhanced rope guidance and increased structural stability.
  • Corrosion Resistance: Suitable for harsh marine and offshore environments with protective coatings and optional galvanized or customized surface treatments.
  • Easy Maintenance: Simple roller and shaft structure allows convenient inspection, maintenance, and replacement.
  • Multiple Certification Options: Available with classification society certificates to meet international marine and offshore project requirements.

Applications of CB3062-79 Four-Roller Fairlead Type BB

The Four-Roller Fairlead Type BB is widely used in:

  • Commercial cargo vessels
  • Bulk carriers
  • Container ships
  • Oil and chemical tankers
  • Tugboats
  • Offshore support vessels
  • Floating docks
  • Offshore oil & gas platforms
  • Port terminals
  • Shipyards
  • Mooring stations
  • Harbor engineering projects

Its versatile roller arrangement makes it ideal for guiding mooring ropes under varying lead angles while maintaining smooth rope operation.

Why Choose Us?

Professional Marine Equipment Manufacturer

With years of experience in marine hardware manufacturing, we specialize in supplying fairleads, bollards, chocks, anchors, chains, mooring equipment, and offshore accessories for global customers.

Strict Quality Control

Every product undergoes rigorous inspection, dimensional verification, material testing, and welding quality control before delivery.

Advanced Manufacturing Facilities

Equipped with modern casting, machining, welding, and coating production lines to ensure consistent product quality.

Customized Solutions

OEM and ODM services are available based on customer drawings, specifications, and project requirements.

Global Export Experience

Our products have been supplied to shipyards, marine contractors, offshore companies, and port authorities across Europe, Southeast Asia, the Middle East, Australia, and the Americas.

Competitive Factory Price

Direct manufacturing enables us to provide reliable products at competitive prices while maintaining fast delivery times.

Frequently Asked Questions (FAQs)

A: The primary difference is the upper structure. Type BA has an open-top design, while Type BB features a closed-top frame that provides additional rope containment and structural protection.

A: The Four-Roller Fairlead Type BB supports steel wire ropes from 19.5 mm to 68 mm and nylon ropes from 36 mm to 100 mm, depending on the selected model.

A: Standard models are manufactured from cast steel. Customized materials can be provided upon request.

A: Yes. CCS, ABS, BV, DNV, LR, NK, KR, RMRS, and other certificates are available.

A: Yes. We can manufacture according to customer drawings, specifications, and project requirements.

A: Marine paint coating, epoxy coating, hot-dip galvanizing, and customized anti-corrosion treatments are available.

A: Standard models are generally available within 7–20 days, depending on quantity and certification requirements.
