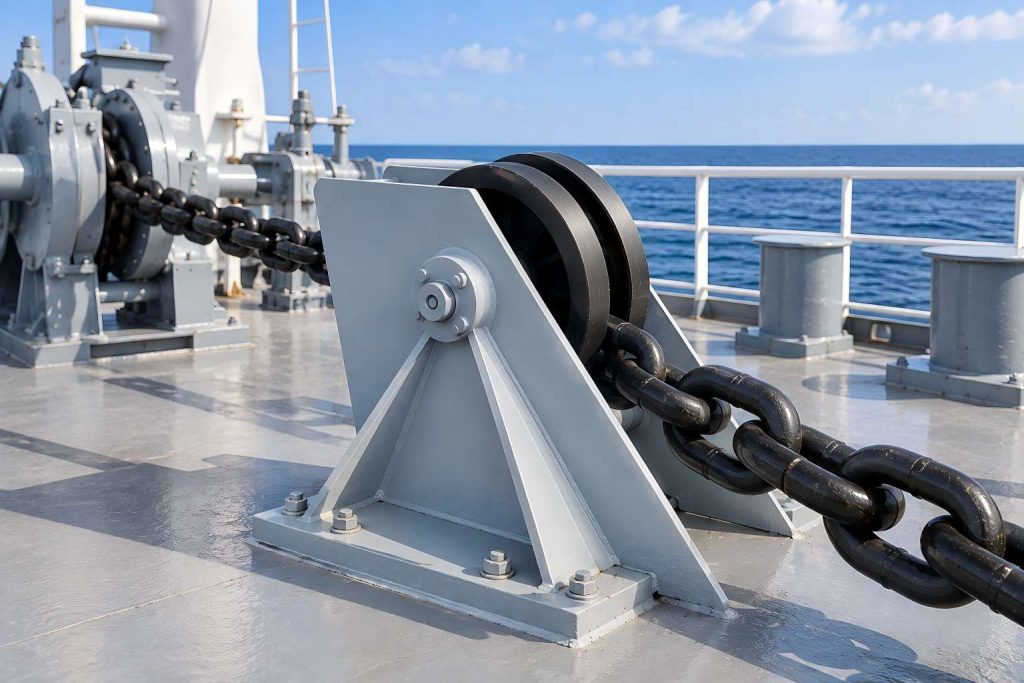

The CB/T 290-95 Marine Chain Wheel is a heavy-duty anchor chain guiding device designed for marine anchoring systems. Installed along the anchor chain path, it supports and guides the chain as it moves between anchoring components, helping maintain proper chain alignment and smooth movement. The specially designed grooved wheel provides stable support for the anchor chain while reducing unnecessary friction and wear during anchor handling. The rotating wheel follows the movement of the chain, making it suitable for anchoring systems where the chain direction needs to be guided or changed.

Manufactured according to CB/T 290-95, the marine chain wheel is available for anchor chain diameters from 12.5 mm to 68 mm. Its robust supporting structure, durable wheel and shaft assembly, and marine-grade protective coating make it suitable for demanding shipboard environments.

Boomarine supplies CB/T 290-95 chain wheels in multiple sizes and can also provide customized manufacturing according to vessel drawings and project requirements.

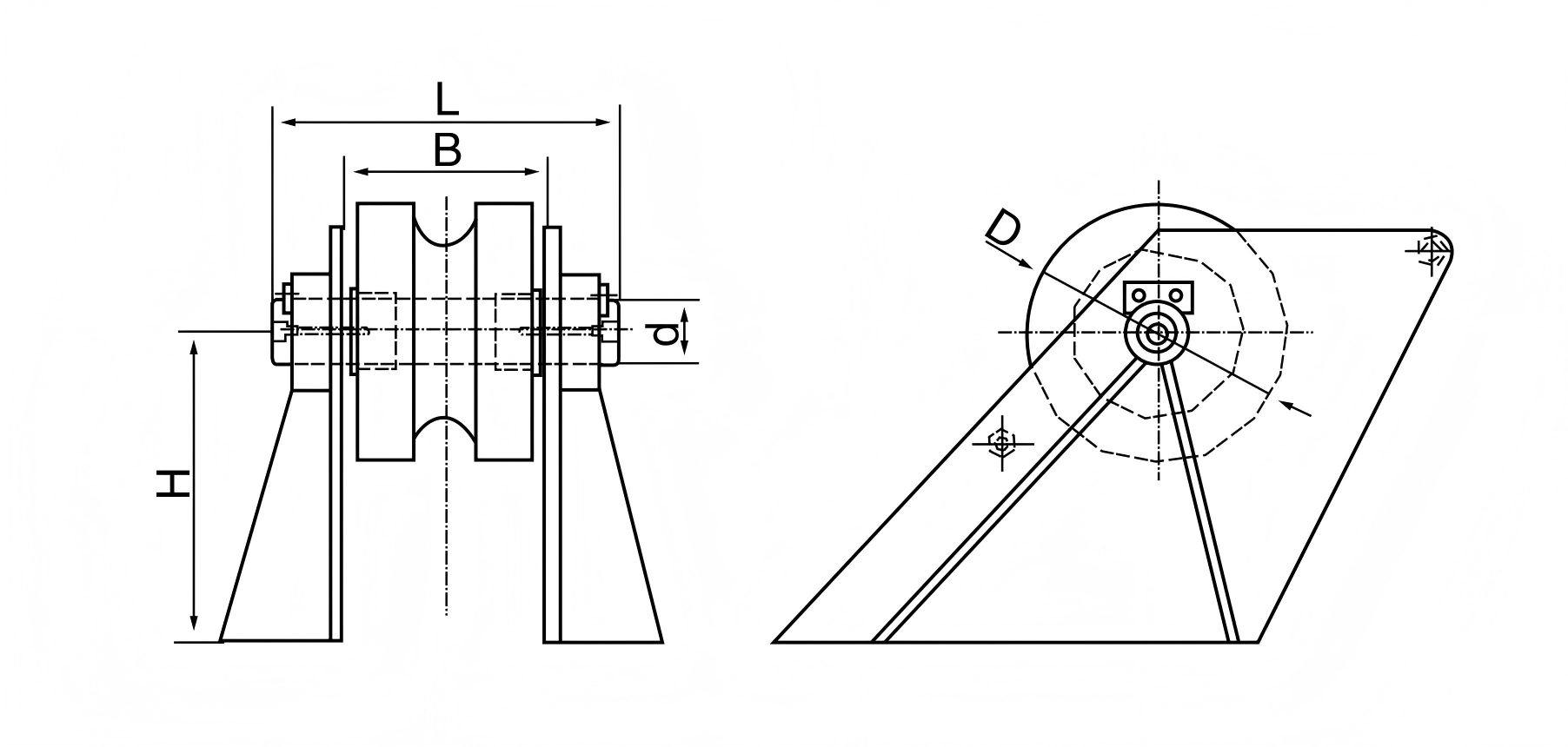

Technical Specifications (mm)

Type	Anchor Chain Dia.	D	d	L	B	H	Weight (ke)
14	12.5–14 mm	154	26	164	94	150	12.7 kg
17.5	16–17.5 mm	192	32	186	108	170	21.0 kg
20.5	19–20.5 mm	226	38	208	122	210	32.6 kg
24	22–24 mm	264	42	236	142	240	50.0 kg
28	26–28 mm	308	48	262	160	280	74.0 kg
32	30–32 mm	352	54	292	178	310	104.9 kg
36	34–36 mm	396	58	319	201	360	144.4 kg
40	38–40 mm	440	64	349	219	390	189.8 kg
44	42–44 mm	484	70	377	239	430	239.9 kg
48	46–48 mm	528	74	405	259	470	—
52	50–52 mm	572	78	430	280	510	370.3 kg
56	54–56 mm	616	82	466	302	540	453.6 kg
60	58–60 mm	660	88	492	320	580	572.3 kg
64	62–64 mm	704	94	526	342	620	687.5 kg
68	66–68 mm	748	98	552	360	660	832.3 kg

Note: The weight value for Type 48 is unclear in the supplied technical drawing and should be confirmed before publication or quotation.

Final dimensions and technical requirements should be confirmed according to the vessel’s anchoring arrangement and approved drawings.

Features of CB/T 290-95 Marine Chain Wheel

1. Smooth Anchor Chain Guidance

The grooved chain wheel supports the anchor chain and helps guide it smoothly through the anchoring system, reducing unnecessary lateral movement.

2. Reduced Chain Friction and Wear

The rotating wheel reduces sliding contact between the anchor chain and fixed supporting structures, helping minimize friction and chain wear.

3. Heavy-Duty Construction

A robust steel support frame, shaft and chain wheel provide reliable mechanical strength for demanding marine anchoring applications.

4. Wide Size Range

CB/T 290-95 chain wheels are available for anchor chains ranging from 12.5 mm to 68 mm, covering a broad range of vessel sizes.

5. Stable Chain Alignment

The wheel groove helps maintain the correct chain position during anchor handling, improving the stability of the anchor chain path.

6. Marine Corrosion Protection

Marine-grade paint and customized coating systems can be applied to protect the equipment against seawater, salt spray and humid marine conditions.

7. Simple Structure & Maintenance

The straightforward wheel, shaft and support-frame construction facilitates inspection, lubrication and routine maintenance.

Main Applications

The CB/T 290-95 Marine Chain Wheel is suitable for anchoring systems on:

• Bulk carriers
• Container ships
• General cargo vessels
• Tankers
• Tugboats
• Workboats
• Barges
• Engineering vessels
• Offshore support vessels
• Marine platforms
• Other commercial vessels

It can be used as part of the anchor chain arrangement where smooth chain guidance, directional control and mechanical support are required.

How Does a Marine Chain Wheel Work?

A marine chain wheel acts as a supporting and guiding component for the anchor chain.

As the anchor chain moves during paying out or heaving operations, it passes over the grooved wheel. The wheel rotates together with the moving chain, providing rolling contact instead of allowing the chain to drag continuously across a fixed steel surface.

This helps:

• Guide the anchor chain in the required direction
• Maintain proper chain alignment
• Reduce sliding friction
• Minimize localized chain wear
• Support smooth anchor handling

Depending on the vessel’s anchor arrangement, the chain wheel can be positioned where additional chain support or directional guidance is required.

Why Choose Boomarine?

1. Professional Marine Equipment Supplier

Boomarine provides marine anchoring, mooring and deck equipment for shipyards, shipowners, marine contractors and offshore projects.

Our product range includes anchor chains, anchors, chain wheels, chain stoppers, fairleads, bollards, marine fenders and other marine deck equipment, allowing customers to source related marine components from one supplier.

2. Quality Control

Material, dimensions, welding, machining, wheel assembly, shaft installation and surface treatment can be inspected according to project requirements.

3. Custom Manufacturing

Dimensions, materials, supporting structures and surface treatments can be customized according to customer drawings.

4. One-Stop Anchoring Equipment Supply

Boomarine can supply chain wheels together with anchor chains, chain stoppers, anchors and other anchoring equipment, helping shipyards simplify procurement.
