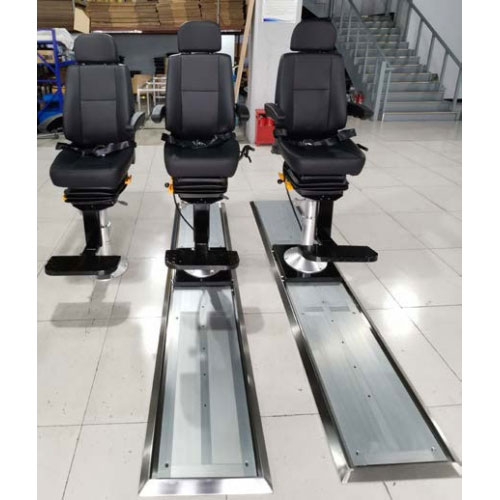

BM-004 Type Helm Chair

  • Ergonomic design ensures ride comfort.
  • High-strength aluminum alloy and stainless steel frame.
  • PU wear-resistant and fire-resistant high imitation leather.
  • Seat can slide forward and backward and be rotated freely 360°.

BM-004 Type Helm Chair is an ergonomically designed, comprehensive and comfortable suspension seat suitable for most types of boats. The chair has a sliding design with 1.2m rails and can also be customized in length upon request. The rails are controlled by the seat side handles for sliding and positioning.

The chair frame is made of high-strength aluminum alloy and stainless steel, which is extremely stable and durable. The seat surface is wrapped in black high-quality PU leather, and can also be customized with leather or fabric according to requirements. The seat back and seat cushion are made of PU cold foamed one-time molding foam, which ensures the comfort of the ride, and the navigator will not feel tired even when cruising for a long time. The seat height and backrest angle can be adjusted within a certain range, making it easy to get up and down and adjust the seat freely in confined spaces.

Our BM-004 type helm chair has a wide range of applications, especially suitable for all kinds of merchant ships, passenger ships, yachts, etc. As a company specializing in the production and export of marine equipment, Boomarine strictly controls the quality of its products and produces seats in accordance with ISO90001 standards. In addition, our seats are also certified by ABS, BV, CCS, DNV, EC, GL, KR, LR, NK and RINA. If you have any needs, please feel free to contact us.

Features of BM-004 Type Helm Chair:

  1. Ergonomic design ensures ride comfort.
  2. The aluminum alloy frame provides extremely high stability and durability.
  3. The seat surface is made of PU wear-resistant and fire-resistant high imitation leather, genuine leather or fabric, with good wear resistance.
  4. Backrest and seat cushion are made of high-density polyester one-time molding high-cold foam rebound fireproof sponge.
  5. Backrest and headrest can be tilted and adjusted within a certain angle.
  6. The height of the seat can be adjusted, and it can be moved back and forth.
  7. Foldable/adjustable angle comfortable seat armrest.
  8. The seat can be rotated 360 degrees, with multi-point positioning.
  9. The height of the foot pedal is adjustable/foldable.
  10. The column can be lifted vertically up and down.

Parameters of BM-004 Type Helm Chair:

  1. The upper part of the seat can be moved forward and backward by 120mm, the height can be adjusted by 50mm, and the seat tilt angle range is ±12°.
  2. Seat back can be adjusted from 85° to 150°, the headrest can be adjusted up and down by 50mm, and the armrest can be controlled by multi-point positioning.
  3. Air pressure rod of the core component of the air pressure lift adopts Stabilus imported from Germany, and the adjustment range of the pneumatic lift is 0-150mm.
  4. Seat can be rotated and locked by 360°, with four-point positioning control.
  5. Seat can move 0-4000mm on the guide rail. The width of the guide rail is 500mm and the depth is 28mm. The transmission part is wheel-type unimpeded double sliding and multi-point positioning control.
  6. Seat pedal can be rotated 90° and returned, and the upper and lower position adjustment range is 0-50mm.
  7. Seat can withstand more than 150FT.LB torsion, reaching the AD level standard.
BM-004 Type Helm Chair

Applications of Captain Chairs

BM-004 Type Helm Chair
BM-004 Type Helm Chair

Product Photo

BM-004 Type Helm Chair


A: Sea, air, and rail transportation. The estimated delivery date depends on the specific order list, the shipping service selected and clear payment received. Delivery times may vary.

  • Product Material: Strictly control the materials used to ensure that they meet the international required standards and maintain a long service life.
  • Semi-finished Product Inspection: We inspect the product 100% before the finished product. Such as visual inspection, thread testing, leak testing, etc.
  • Production Line Test: Our engineers will check the machine and production line regularly.
  • Finished Product Inspection: We conduct testing according to ISO19879-2005, leak testing, verification testing, component reuse, blasting testing, cyclic durability testing, vibration testing, etc.

A: Different products, and different running quantities will affect the delivery date, but generally the delivery date of the product is around 30 days. Most products are in stock, please feel free to contact us for more information.

A: If you have new product drawings or samples, please send them to us, we can customize products according to your requirements. We will also provide expert advice on our products to make the design more achievable and maximize performance.

A: We don’t have strict requirements for most items because we have stock. For more information can send us a list of inquiries, and we will check and reply to you. For customization, MOQ will provide recommendations based on specific products.

A: If the damage is caused by quality problems, we provide a 1-year free warranty.
