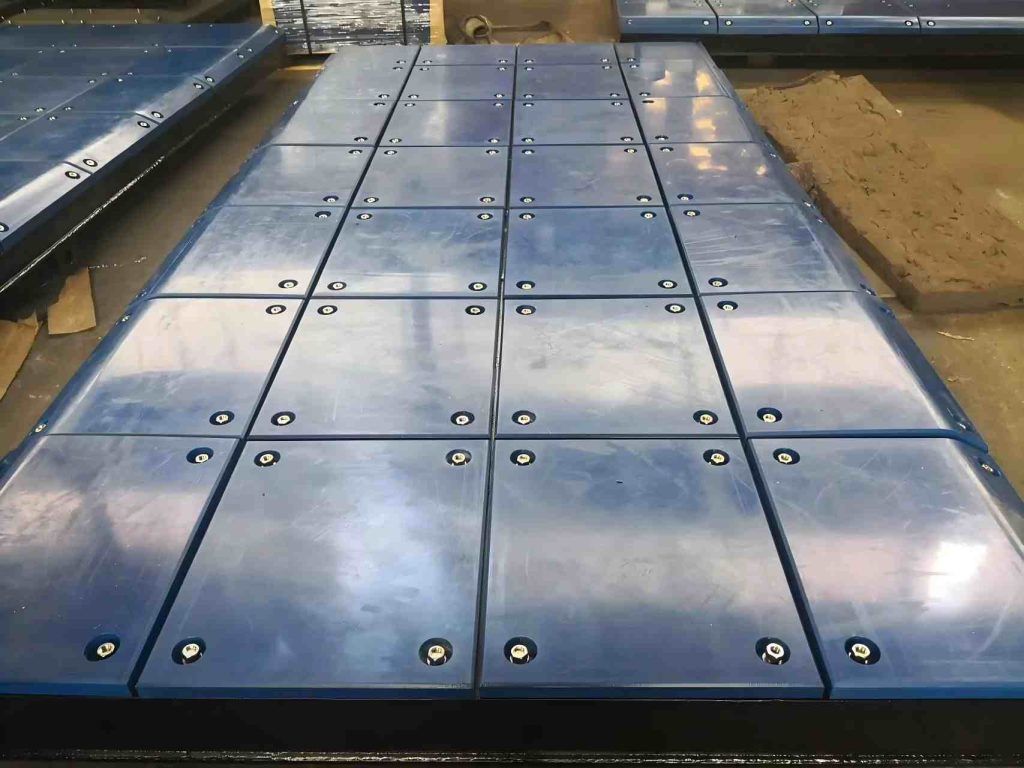

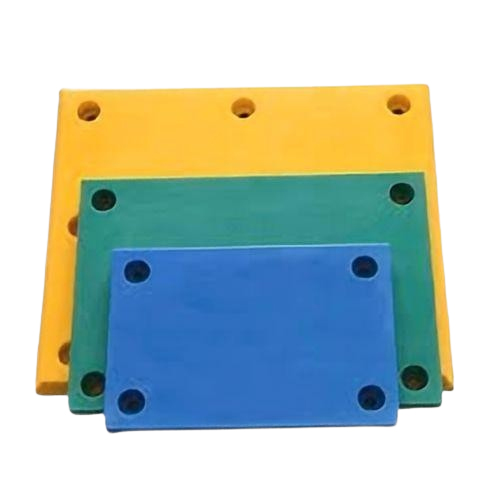

UHMWPE Marine Fender Sliding Panel

Material: 100% Virgin UHMWPE
Tensile strength: ≥ 22 MPa
Thickness:20 mm to 150 mm, Customizable
Density: 0.93–0.96 g/cm³
Working Temperature Range: –80°C to +80°C
Outstanding Impact Absorption
Marine Weather Resistance
100% recyclable & non-rotting
Available in different colors and sizes

Description

UHMWPE (Ultra High Molecular Weight Polyethylene) marine fender sliding panels are engineered to provide a low-friction and wear-resistant contact surface for wharf fender systems. Installed on the front face of steel fender panels, these sliding pads allow vessels to move smoothly along the berth during docking, significantly reducing hull damage and extending the service life of rubber fenders.

Unlike traditional steel or rubber surfaces, UHMWPE provides a self-lubricating surface that enables vessel hulls to glide smoothly along the fender face, significantly reducing shear forces during mooring. Manufactured from premium virgin polyethylene with a molecular weight exceeding 4.5 million, our panels are designed to withstand the massive impact of large vessels while resisting the corrosive effects of saltwater, ozone, and extreme temperatures.

At Boomarine, we specialize in advanced engineering plastics for the marine industry. With years of experience in marine engineering solutions, we provide high-quality UHMWPE products that comply with international standards such as ISO 9001, ISO 15527, REACH, and RoHS. Available in custom sizes and colors for ports, harbors, and heavy-duty marine terminals.

Technical Specifications

Property	Value	Description
Material	100% Virgin UHMWPE	Marine-grade
Density	0.93–0.96 g/cm³	Lightweight, non-absorbent
Molecular Weight	3–5 million	Ensures extreme durability
Coefficient of Friction	0.10–0.22	Ultra-low friction with vessels
Tensile Strength	≥ 22 MPa	High structural stability
Impact Strength	No break	Excellent for heavy berthing loads
UV Resistance	Yes	Stabilized for outdoor exposure
Chemical Resistance	Excellent	Inert to seawater, oils, chemicals
Temperature Range	–80°C to +80°C	Suitable for global climates
Color Options	Black, blue, yellow, custom	UV-stable pigments
Machining	CNC precision	Bolt holes, slots, chamfers

* Custom sizes, thicknesses, and shapes available according to project or engineering drawings.

Key Features

Ultra-Low Friction Performance: These panels almost completely prevent hull damage and lessen the strain on the dock structure thanks to a friction coefficient as low as 0.15.
Superior Wear Resistance: five to seven times more resilient to wear than steel. sustains performance after years of intensive use
Outstanding Impact Absorption: The material is nearly indestructible and retains its integrity even when struck by massive boats at high speeds.
Marine Weather Resistance: chemically inert and UV stabilized. It ensures that the dimensions stay constant under submerged settings since it does not rot, corrode, or absorb water (0% water absorption).
Lightweight & Simple to Install: Much lighter than metal substitutes. CNC-machined to provide precise installation and alignment.
Minimal Maintenance Needs: There is no need for oiling, greasing, or maintenance. Throughout its existence, the substance keeps its slick surface.
Customizable: Standard colors include Black, Yellow, Blue, and Green. They may be machined to fit any fender system with pre-drilled holes, chamfers, and precise measurements.

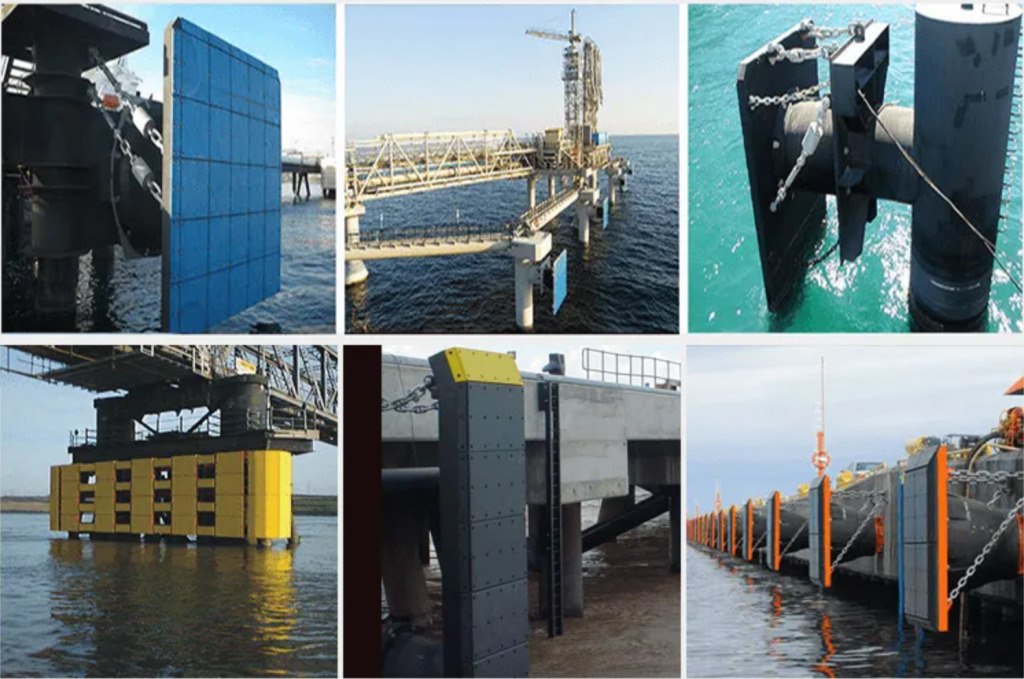

Applications

Our UHMWPE sliding panels are versatile and essential for various marine infrastructure projects:

Wharf and jetty fender systems
Rubber fender front panels (Cone fenders, Cell fenders, V fenders, Arch fenders, etc.)
Docking structures, dolphins, terminals
Shipyards and cargo ports
Offshore platforms and mooring facilities
Ferry landings and high-frequency berths
