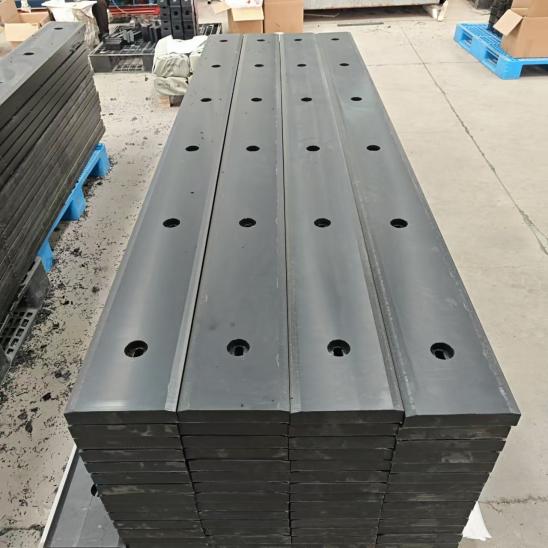

UHMWPE Sheet
- Material: 100% virgin UHMWPE
- Density: 0.93–0.96 g/cm³
- Tensile Strength: ≥ 22 MPa
- Thickness: 20–150 mm (customizable)
- Working Temperature: –80°C to +80°C
- Key Features: Outstanding impact absorption, self-lubrication, marine weather resistance
- Durability: Non-rotting, corrosion-resistant, long service life
- Sustainability: 100% recyclable
- Options: Available in different colors, sizes, and custom machining
UHMWPE (Ultra High Molecular Weight Polyethylene) sheet is a high-performance engineering plastic material that has truly exceptional wear resistance, impact strength, low friction coefficient and solid chemical resistance. Compared with normal metal parts and ordinary plastic materials, UHMWPE sheet can offer a longer service life, reduced maintenance expenses and better day-to-day operating efficiency in tough industrial situations
Because it has excellent self-lubricating behavior along with strong tenacity, UHMWPE sheets are widely applied in mining, marine engineering, bulk material handling, conveyor systems, chemical processing plants, ports, food processing lines, and in heavy machinery industry work too.
As a professional manufacturer of engineered plastic solutions, Boomarine aims to supply high-quality UHMWPE products for marine, industrial, and heavy-duty wear applications worldwide. With advanced production equipment, strict quality control, and wide project experience, Boomarine delivers tailored UHMWPE sheet options that are built to fit varying operating settings and customer needs.
Features of UHMWPE Sheet
- Excellent wear resistance: UHMWPE comes with extremely high abrasion resistance, and it really beats carbon steel, nylon, and many other engineering plastics during sliding as well as impact work.
- Outstanding impact toughness: even when the temperature is low or the load is high, UHMWPE sheet materials tend to keep strong toughness and good crack resistance.
- Low friction and self-lubrication: the naturally low-friction surface helps prevent material sticking and cuts down equipment running noise, without needing extra lubricants at all.
- Superior chemical resistance: it stands up well against acids, alkalis, moisture, saltwater, and many corrosive chemicals, so it fits harsh industrial setups pretty well.
- Lightweight and easy installation: UHMWPE sheets are much lighter than steel but still deliver high mechanical performance, which can reduce structural load and make installation easier.
- Weather and UV resistance: UV-stabilized grades work for outdoor use over long periods, marine settings, and port facilities.
Typical UHMWPE sheet applications:
- Marine and Port Engineering: Fender pads, dock panels, and vessel shield systems (low friction, impact protection), also keep things calm on contact.

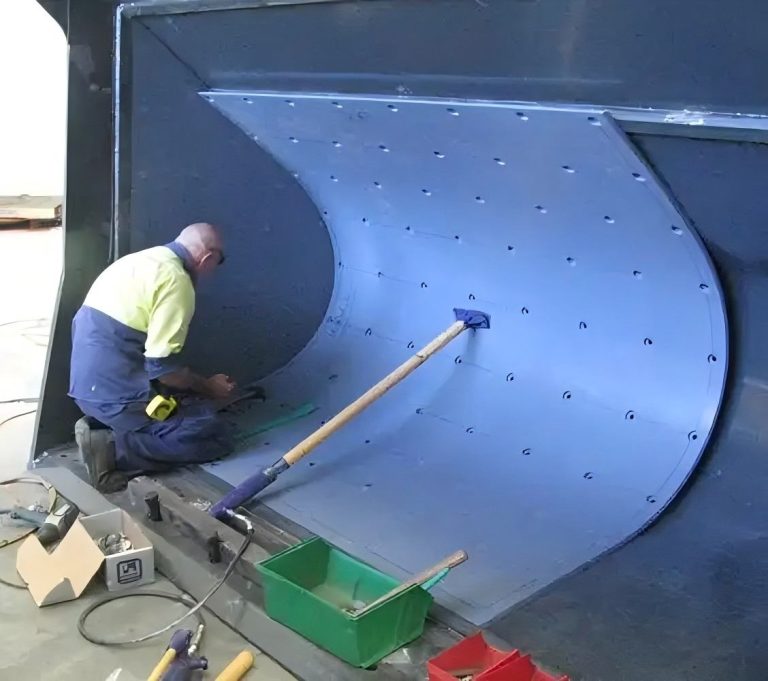

- Mining and Bulk Handling: Hopper liners, chute liners, and conveyor wear plates (anti-wear, anti-sticking), it helps against constant abrasion.
- Conveyor and Machinery Systems: Wear strips, chain guides, slide rails (quiet operation, minimal service), it reduces frictional drag.
- Chemical and Water Treatment: Tank liners and corrosion-resistant components (chemical resistance, long-lived performance), great when exposure is harsh.
- Food Processing: Food conveyors and equipment sections (food-grade safety, hygienic wear resistance), made for clean handling and repeat use.
Key Factors for Selecting UHMWPE Sheets
Choosing the correct UHMWPE sheet depends on operating conditions such as wear intensity, impact load, environmental exposure, and installation requirements.
1. Molecular Weight Selection
| Molecular Weight Range | Performance Level | Key Advantages | Typical Applications |
|---|---|---|---|
| 1.0–1.5 million | Entry / Light-duty grade | Good processability, cost-effective, easy machining | Guide rails, liners, gaskets, light-load wear parts |
| 1.5–2.5 million | General-purpose grade | Balanced wear resistance and impact strength, widely applicable | Conveyor systems, machinery parts, general industrial wear components |
| 2.5–6.0 million+ | High-performance / Heavy-duty grade | Extremely high wear resistance and impact durability | Mining equipment, hoppers, ports, marine fenders, heavy conveying systems |
2. Selection Principle
- Severe wear & heavy impact → Higher molecular weight grade
- General industrial use → Medium molecular weight grade
- Light-duty applications → Lower molecular weight grade
Manufacturing & Modification Options
1. Manufacturing Methods
| Type | Key Features | Recommended Applications |
|---|---|---|
| Compression Molded UHMWPE | High density uniformity, better stability, superior wear resistance | Marine fender pads, mining liners, heavy conveyors, port equipment |
| Extruded UHMWPE | Cost-effective, consistent dimensions, suitable for large and thin sheets | General liners, wear strips, slide plates, conveyor parts |
2. Modified UHMWPE Grades
| Grade | Key Feature | Applications |
|---|---|---|
| UV Resistant (Black) | Anti-aging, weather & sunlight resistance | Marine docks, outdoor conveyors, ports, solar environments |
| Anti-Static | Surface resistivity 10⁶–10⁹ Ω, prevents static buildup | Electronics, grain handling, powder conveying, explosive dust areas |
| Conductive / Flame Retardant | Customized safety & electrical protection | Electrical systems, fire safety environments, special industries |
3. Thickness Selection Guide
| Thickness | Applications |
|---|---|
| 5–20 mm | Light-duty liners, gaskets, guide rails |
| 20–50 mm | Conveyor liners, hopper liners, medium-load wear plates |
| 50–200 mm | Heavy mining equipment, port machinery, high-impact zones |
4. Standard Sizes
| Type | Specification |
|---|---|
| Standard Sizes | 1000 × 2000 mm, 1200 × 2400 mm |
| Custom Sizes | Available upon request |
5. Machining & Fabrication Services (Summary)
- CNC machining
- Drilling & countersunk holes
- Chamfering
- Custom cutting
- Finished installation-ready parts
Installation Note:
For large panels, one-piece installation is recommended when possible. Leave 1–2% expansion gap to avoid thermal deformation and cracking.
