CB 286-84 Cast Steel Bar Type Chain Stopper

The CB 286-84 Cast Steel Bar Type Chain Stopper is a heavy-duty marine deck fitting designed to securely hold the anchor chain and transfer chain loads away from the anchor windlass. Installed in the anchor chain line between the windlass and hawse pipe, the stopper uses a robust cast steel body and lever-operated locking bar to engage the anchor chain. Once the locking bar is closed, the chain is mechanically restrained, helping prevent unintended chain movement and reducing continuous loading on the windlass and its braking system.

Manufactured according to CB 286-84, this cast steel chain stopper is suitable for Grade 1, Grade 2 and Grade 3 anchor chains with diameters from 12.5 mm to 68 mm. Its compact structure, high-strength cast construction and simple mechanical operation make it suitable for commercial vessels, workboats, tugboats, barges and other marine anchoring systems.

Boomarine can provide Chain Stoppers in different sizes, surface treatments and project-specific configurations according to vessel specifications and customer drawings.

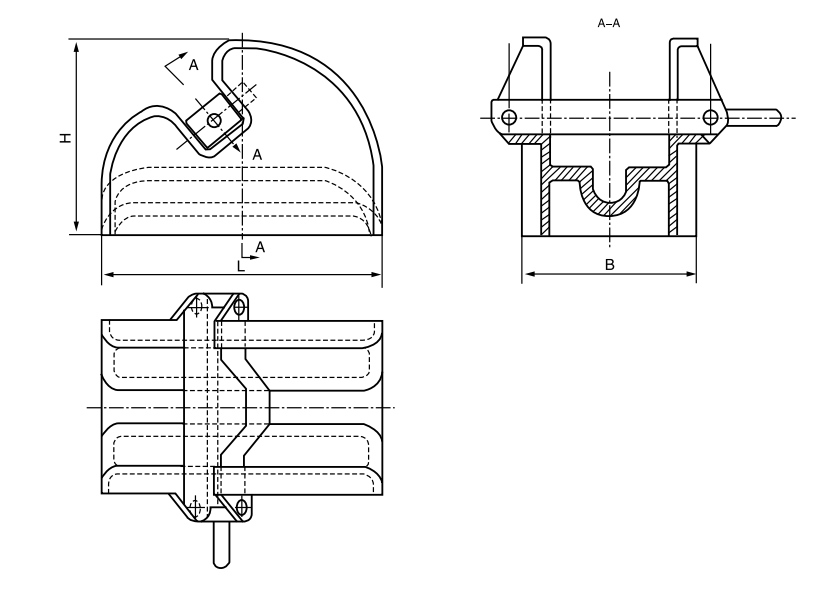

Technical Specifications of CB 286-84 Cast Steel Bar Type Chain Stopper (mm):

Anchor Chain Dia.	B	H	L	Weight (kg)
12.5–14 mm	142 mm	162 mm	235 mm	22 kg
16–17.5 mm	170 mm	190 mm	270 mm	29 kg
19–20.5 mm	193 mm	216 mm	310 mm	36 kg
22–24 mm	219 mm	241 mm	345 mm	45.5 kg
26–28 mm	241 mm	270 mm	385 mm	58 kg
30–32 mm	274 mm	305 mm	435 mm	74 kg
34–36 mm	304 mm	342 mm	490 mm	92 kg
38–40 mm	336 mm	378 mm	540 mm	115 kg
42–44 mm	366 mm	412 mm	590 mm	145 kg
46–48 mm	397 mm	450 mm	640 mm	183 kg
50–52 mm	428 mm	491 mm	695 mm	225 kg
54–56 mm	457 mm	528 mm	745 mm	271 kg
58–60 mm	488 mm	564 mm	795 mm	352.5 kg
62–64 mm	517 mm	600 mm	850 mm	424 kg
66–68 mm	547 mm	635 mm	900 mm	509 kg

* Technical dimensions and weights above are based on the supplied product drawing. Please confirm final specifications and drawings before production.

Key Features of CB 286-84 Cast Steel Bar Type Chain Stopper

• Manufactured from robust cast steel to provide high mechanical strength and reliable performance under anchor chain loads.
• The bar-type locking mechanism engages the anchor chain and helps prevent unwanted chain movement when the anchor chain needs to be secured.
• When engaged, the chain stopper transfers anchor chain tension to the vessel’s supporting structure instead of leaving the windlass brake to carry the load continuously.
• Available for anchor chain diameters from 12.5 mm to 68 mm, allowing the product to accommodate a wide range of vessel anchoring systems.
• The straightforward lever-operated design contains relatively few moving components, making operation, inspection and routine maintenance convenient.
• Marine-grade protective coatings help protect the cast steel structure against seawater, salt spray, humidity and other corrosive marine conditions.
• The stopper can be securely welded to the designated deck foundation, providing a strong and stable installation for the anchor chain system.
• We can supply surface treatment, dimensions, and other technical details per vessel drawings, shipyard requirements, and project specifications.

How Does a Roller Type Chain Stopper Work?

The CB 286-84 bar type chain stopper is normally installed in the anchor chain path between the anchor windlass and hawse pipe.

During anchor handling, the locking bar is opened so that the anchor chain can move through the stopper.

Once the anchor reaches the required position and chain length, the operating bar is moved into its locking position. The locking component engages the anchor chain and mechanically restricts its movement.

The chain stopper can then transfer the anchor chain load into the vessel’s deck structure, helping relieve continuous load from the windlass brake and transmission system.

Before heaving or paying out the anchor chain again, the load should be appropriately managed and the stopper released according to the vessel’s approved operating procedure.

Applications of CB 286-84 Cast Steel Bar Type Chain Stopper

The CB 286-84 Cast Steel Bar Type Chain Stopper can be used as part of anchoring systems on:

• Cargo ships
• Container vessels
• Bulk carriers
• Tankers
• Tugboats
• Barges
• Workboats
• Engineering vessels
• Offshore support vessels
• Inland and coastal vessels
• Other commercial and marine vessels

It is particularly suitable for anchoring arrangements requiring a compact, mechanically simple and reliable chain-securing solution.

How to Select the Correct Chain Stopper?

Selecting a chain stopper should begin with the specifications of the vessel’s anchor chain.

When requesting a quotation from Boomarine, please provide:

1. Anchor Chain Diameter
For example: 28 mm, 44 mm or 60 mm.

2. Anchor Chain Grade
Grade 1, Grade 2 or Grade 3.

3. Required Standard
Specify CB 286-84 or the standard required by your project.

4. Vessel Type
Cargo vessel, tugboat, barge, offshore vessel, etc.

5. Quantity
Number of chain stoppers required.

6. Classification Requirement
Please specify CCS, ABS, BV, DNV, LR, NK or other required classification society, if applicable.

7. Technical Drawing
For newbuilding and replacement projects, vessel drawings or existing stopper dimensions are recommended for technical verification.
