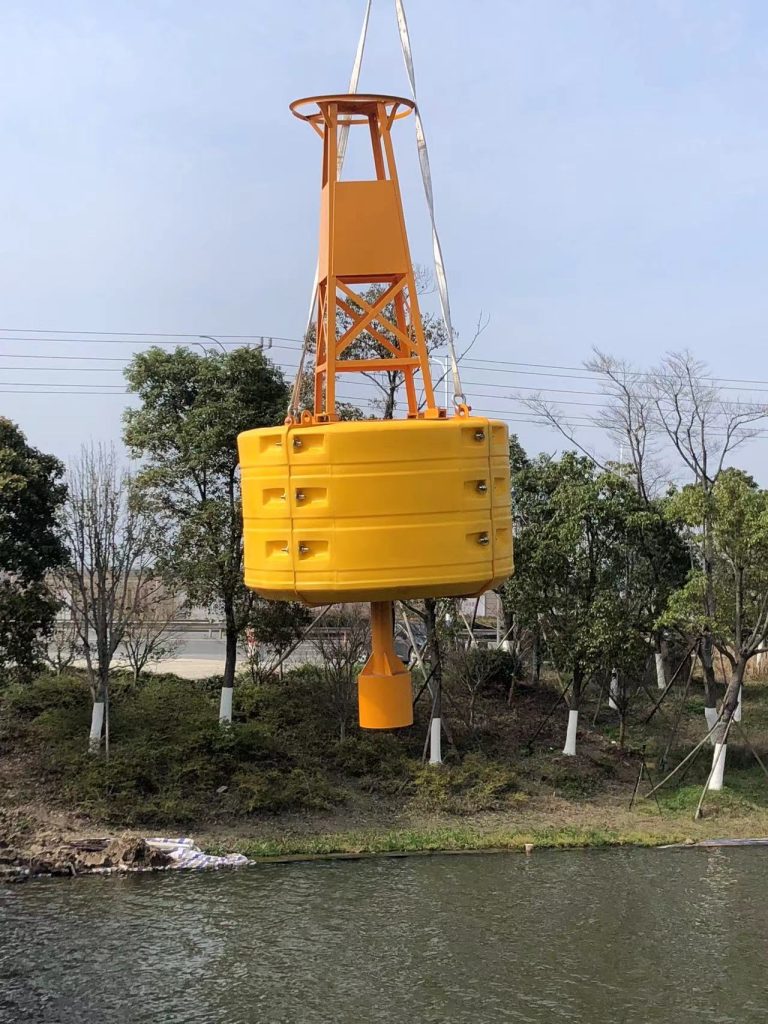

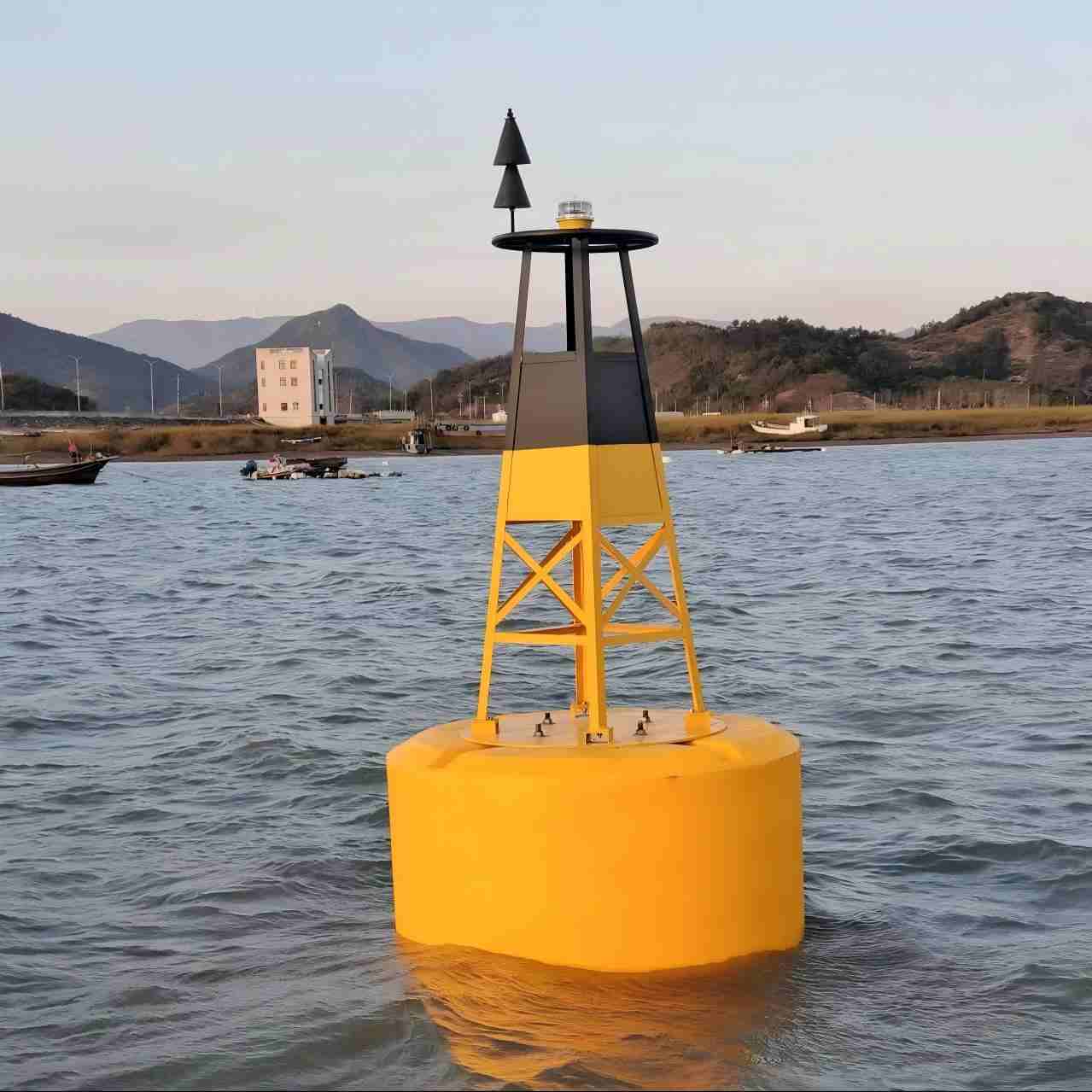

FB1200A Navigation Buoy

Material: LLDPE, Stainless steel, Polystyrene/Polyurethane
Diameter: 1200mm
Height: 2000mm
Thickness: 8mm
Buoyancy: 320kg
Focal Plane Height: 1500mm
Mass weight of the buoy: 200kgs
LED solar light: AH-LS-C
Color: Various Colors with IALA, Customizable
Certificate: ISO9001:2015, IALA

Description

The FB1200A Navigation Buoy has been designed for ease of use and reliability during maritime navigation, channel marking, offshore projects, and use in a port. It possesses exceptional buoyancy and endurance and performs well in extreme marine conditions.

Marine aids to navigation buoys are artificial signs that guide navigation, position and mark obstacles and warnings. Its outer shell is integrally formed from UV-stabilized colored polyethylene, which is protected from long-term degradation by natural radiation. Internally filled with closed-cell polyurethane for strength and buoyancy. And equipped with cast-iron ballasts for stability.

This buoy has optimized performance due to its small size. Robust, lightweight polyethylene buoy tops are moulded in standard IALA high-visibility colors and shapes to meet a variety of installation requirements. Since the manufacturing process requires little maintenance, they have an expected lifespan of up to 20 years. The working life is 3 times that of steel buoys.

As a manufacturer and supplier of marine aids to navigation, Boomarine has produced solar marine lanterns, navigation and mooring buoys, and customised floating solutions. Their products are distributed and utilised around the world by port authorities, offshore contractors, environmental organisations, maritime agencies, and innovative safety organisations. Boomarine Engineering prides itself on performing to the highest quality standards, which meet clients’ international requirements.

Features of FB1200A Navigation Buoy

Flexible Mooring Options: Attaching points for secure installation and mooring eyes are also included for extra versatility of the assembly.
Durable Construction: Designed and made using advanced polyethylene, which is rated as UV stable and impact-proof, corrosion-resistant, and capable of withstanding temperature extremes.
Excellent Buoyancy: Able to retain equilibrium and resist capsizing while the flotation volume is large and the structure is stable.
High Visibility: With reflectors placed at strategic points and lights set at suitable angles, the underwater structure remains visible even in challenging visibility conditions.
Modular Design: Helps the structure to be carried and moved in a simplified manner in combination with maintaining a modular, interconnected structure that provides ease of maintenance and replacement of parts.
Customisable Top Marks & Lanterns: Solar marine lanterns and top marks attaching to the structure also comply with IALA standards.
Cleansing Servicing Maintenance: Resistant to marine growth and fouling while also maintaining simple cleaning service.
Flexible Mooring Options: Attaching points for secure installation and mooring eyes are also included for extra versatility of the assembly.

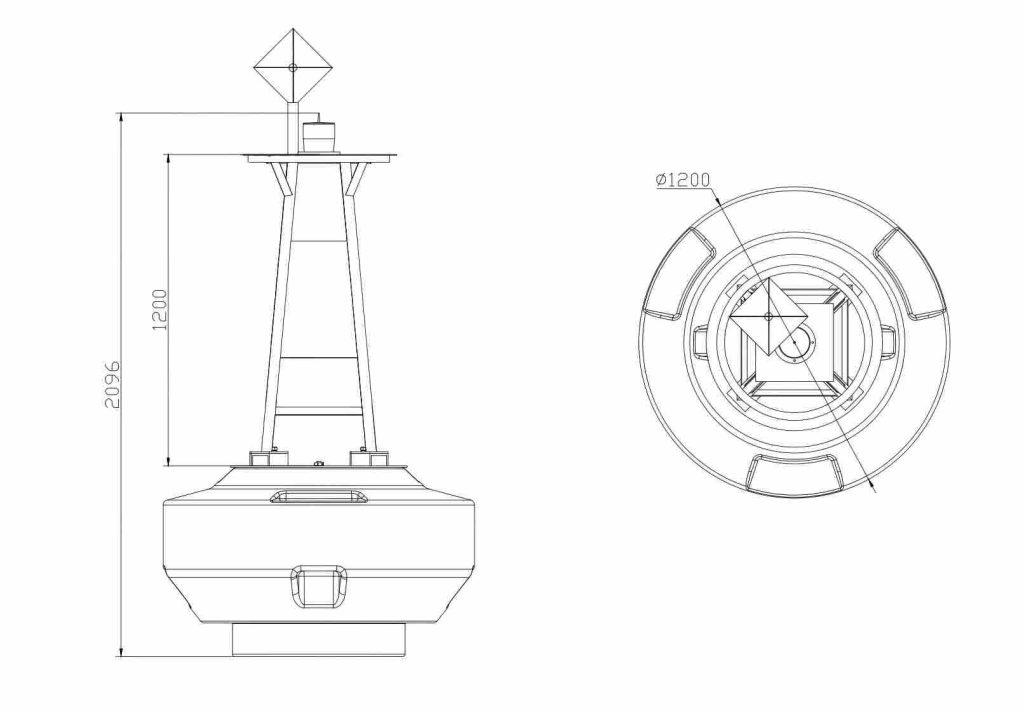

Dimensions:

General Characteristics	1	Focal plane height	1500mm
	2	Freeboard	400mm
	3	Draft	330mm
	4	Buoyancy	320kg
	5	Reserve Buoyancy	320kg
	6	Visual area	＞1 nautical miles
Physical	1	Material & Manufacturing Method	LLDPE & Rotational Molding
	2	Wall thickness	8mm
	3	Material for bolt&Ring	Stainless steel
	4	Internal material of float	Polystyrene/Polyurethane
	5	Height of the buoy	2000mm
	6	Dia.of the buoy	1200mm
	7	Mass weight of the buoy	200kgs
	9	LED solar light	Dia. of the buoy
	10	Service Life	≥100,000 hours

Applications of FB1200A Navigation Buoy

Marking navigation channels, rivers, and coastal waterways.
Offshore oil & gas platforms and wind farm perimeters.
Harbor entrances, breakwaters, and port approaches.
Temporary or permanent deployment in dredging and construction zones.
Safety and warning indicators in restricted or hazardous waters.

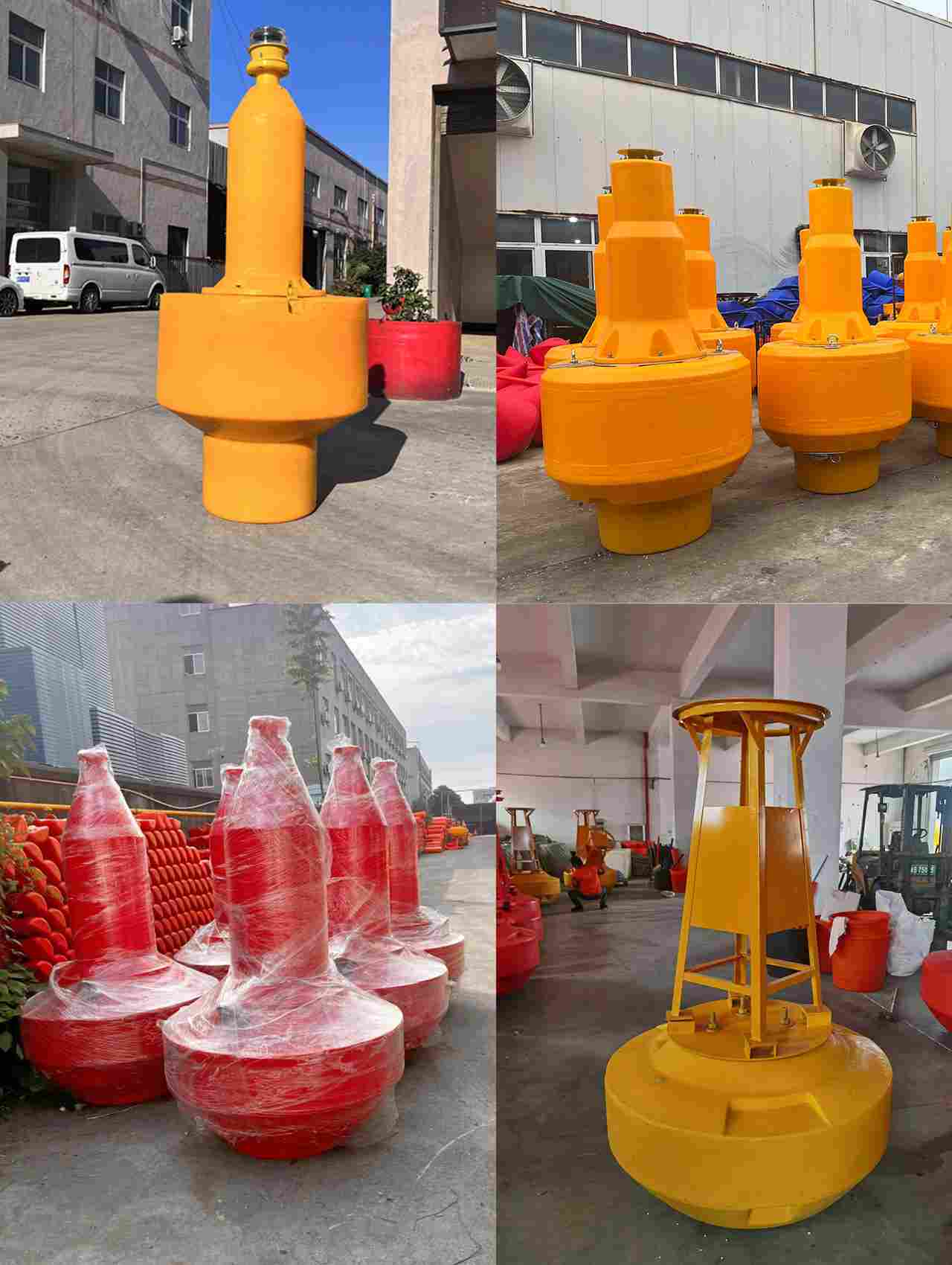

Products Photos

*All Navigation Buoy can be customized.

FAQ

A: The buoy is manufactured from high-density UV-stabilised polyethylene and is designed with internal flotation aids constructed from lightweight, resilient, closed-cell polyurethane foams.

A: Yes, marine lanterns that are compliant with IALA regulations and designed for use with the FB1200A are available to provide night visibility.

A: The buoy is expected to last for over a decade when installed correctly with minimal routine maintenance, and is placed in typical sea conditions.

A: Indeed, we offer various colours, top marks, radar reflectors, and customer-specified lantern configurations.

A: We can provide usage suggestions. Each product has a fixed warranty period. If there is any quality problem with the fixed quality guarantee date, we can provide you with a new one.

A: The buoy can be moored using a sist, chains, or sinkers, and can also be secured with site-appropriate anchors. Buller Guides and the rest of the technical team can advise on safe positioning and secure installation.

A: It is commonly used as a buoy in ports, rivers, and offshore on platforms and dredging or marine construction areas.

If you have other questions, please feel free to contact us. We will reply to you within 24 hours!
