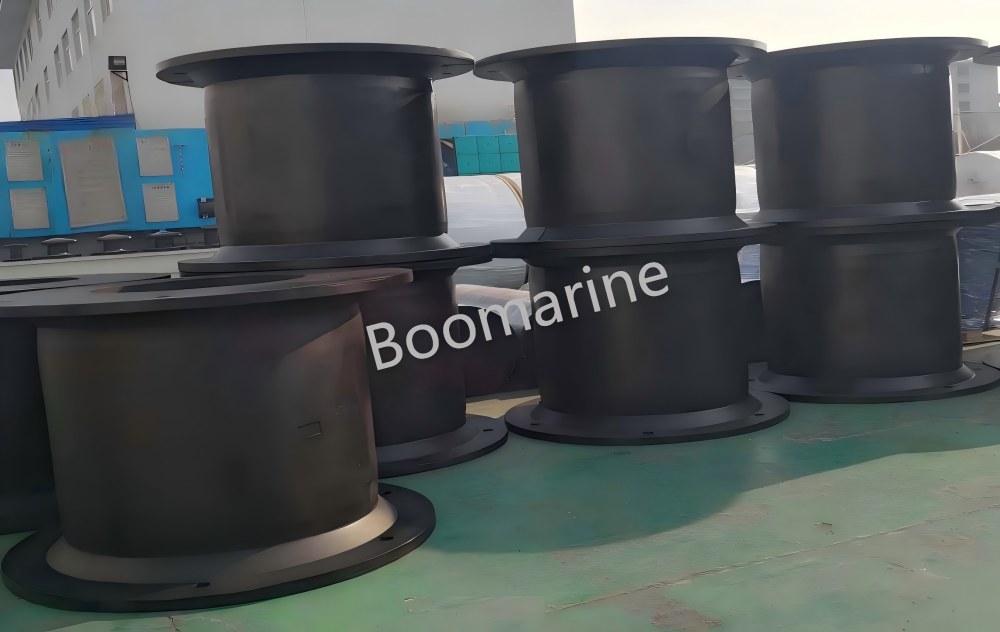

Super Cell Rubber Fender

Type: Cylindrical Type
Materials: Natural Rubber, Styrene-butadiene Rubber
Diameter: 650mm to 3350mm
Height: 400mm to 3000mm
Color: Black or custom as required
Certificates: ABS, BV, NK, LR, CCS, etc.
Description

Super cell rubber fender is also known as SC type rubber fender, is a kind of rubber fender with ultra-high energy absorption performance, which has excellent multi-direction angular performance with high energy absorption and low reaction force.

The cell fender has a long history and its present structure is the result of continuous improvement. It is available in heights between 400mm and 3000mm and maximum diameters range from 650mm to 3350mm. It can also be customized according to customer needs. This gives it simplicity, high performance, and high strength, but its mounting dimensions have not changed and it is interchangeable with many earlier types of cell fenders. This kind of cell fender has various specifications and sizes to meet various berthing needs.



Compare with general cell rubber fenders, super cell rubber fenders raised design compression 5%, thus maintain the reaction force while increase energy absorption value by about 15%.  The frontal panel can greatly reduce the hull pressure, which makes it especially proper for the berthing of a large ship.  Frontal panel will be mounted to rubber fender to reduce the surface pressure to ship. And the UHMW-PE pad bolted on the frontal panel can lessen the friction factor between ship and fender and reduce the shear force greatly during ship berthing, therefore prolong the fender system service life.

Boomarine offers various types of marine rubber fenders, which are made from premium natural rubber and another styrene-butadiene SBR based compound to meet various performance requirements. Our rubber fenders will go through nearly 100 production and quality inspection processes before leaving the factory to ensure that the best quality products are delivered to you. In addition, all our rubber fenders come with approvals from classification societies such as CCS, ABS, BV, LR, KR, DNV-GL, NK, RMRS and RINA.





Features of Cell Fenders:



- High energy absorption, low reaction force
- Good shear resistance
- Highly durable structural design
- Easy to install and remove
- Can support large panels
- Reduce hull pressure
- Multidirectional dispersion of energy
- Minor affection in angular berthing
- Long service life and high efficiency, making it cost-effective




Accessories of Cell Fenders:


1. Pre-built in U ring - U-rings are pre-installed in the concrete to hold the chain in place.
2. Pre-built-in Bolt & Nut - They are used to fasten the fenders to the dock.
3. Chains - Including tensile chain, weight chain and shear chain.
4. Front Panel - High pressure is created when the ship approaches the dock. So the front panel is there to reduce surface pressure and avoid damage to the fenders and the boat.
5. Face Pad - Reduce the coefficient of friction to protect the hull.
6. Connector - Attach the fenders to the front panel and face pads.
7. Cell Type Buffer - Absorbs ship shock energy to protect docks and ships.




Main Applications of Cell Fenders:


- Oil and LNG Facilities
- Bulk Terminals
- Offshore Platforms
- Container Berths
- RoRo and Cruise Terminals
- Multi-user Berths
- Ideal for ships with low hull pressure headroom




Dimensions:

(Download PDF at this page for more details)

super cell fender dimensions

Type(mm) H h D1 D2 n-Φd
SC400H 400 25 550 650 4–30
SC500H 500 25 550 650 4–32
SC630H 630 30 700 840 4–39
SC800H 800 30 900 1050 6–40
SC1000H 1000 35 1100 1300 6–47
SC1150H 1150 40 1300 1500 6–50
SC1250H 1250 45 1450 1650 6–53
SC1450H 1450 47 1650 1850 6–61
SC1600H 1600 50 1800 2000 8–61
SC1700H 1700 55 1900 2100 8–66
SC2000H 2000 55 2000 2200 8–74
SC2250H 2250 60 2300 2550 10–74
SC2500H 2500 70 2700 2950 10–74
SC3000H 3000 75 3150 3350 12–90


How to install the cell fenders?



- This figure shows the way:

installation method of cell fenders



Project Photos:


Cell Fender



FAQ


1. Can you provide OEM service?
A: Yes, OEM service is available. According to the different requirements in different applications, colors, sizes, shapes and special specifications can be customized.

2. What is your term of delivery?
A: We accept EXW, FOB, CIF, DDU and DDP, etc. You can choose the one that is the most convenient for you.

3. How long is your cell fenders' delivery time?
A: Generally it is 5-10 days if the cell fenders are in stock. If it is not in stock, it takes 15-20 days but it's basically decided by the quantity.

4. What are your terms of payment?
A: The payment term is flexible. We accept T/T, L/C,  and other terms. Open to discussion.

5. Is there any warranty on the quality of your cell fenders?
A: We have 20 years of experience in producing marine fenders. Each finished fender will be carried out inspection by our Q.C before shipping. Our cell fenders design service life is 20 years, our company has quality warranty at least 18-month.

6. What kind of certificate can you provide for cell fenders?
A:  Any third-party company inspection is available such as ABS, BV, NK, LR, CCS, etc.
